Zircon MT7 MetalliScanner - Metal Scanner Detector Locator

SKU# - MT7

Zircon MT7 MetalliScanner - Metal Scanner Detector Locator

    • 3% less
    Market price: $169.99, you save $5.00
  • $164.99
In stock (6 items available)
Add a different product to compare

Zircon MT7 MetalliScanner - Metal Scanner Detector Locator

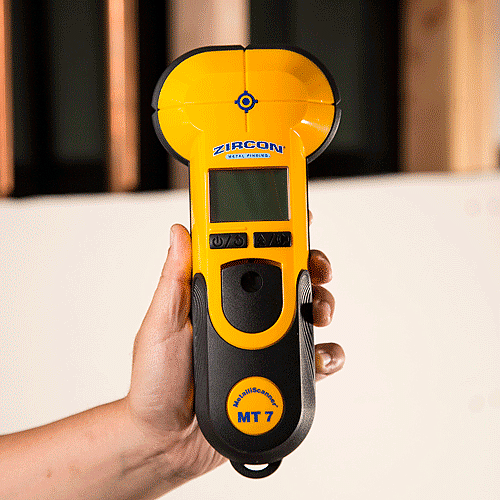

The Zircon MetalliScanner® MT 7 metal detector quickly and easily locates rebar, pipes, and other metal before you saw or drill.

The bright, backlit display indicates metal target depth (inches and centimeters) up to 6 in. deep, type of metal located (ferrous or non-ferrous), and whether you are moving towards or away from a target.

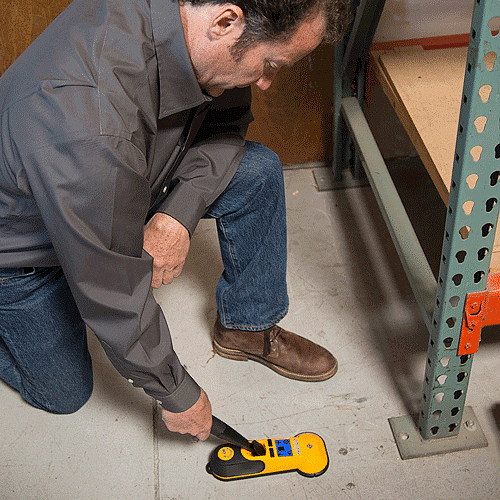

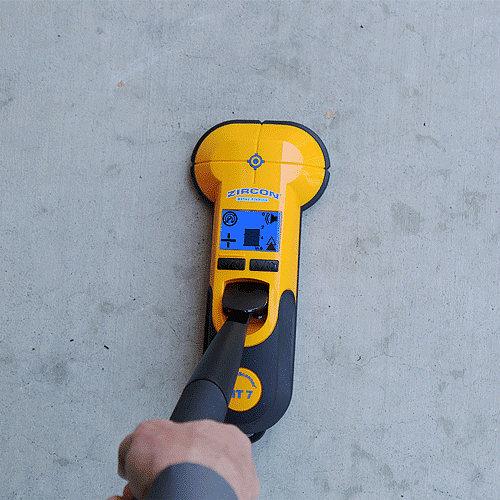

Use to find and avoid rebar in concrete before drilling, to find pipes and junction boxes behind tile, and even detect the nails/tacks in studs behind lath and plaster walls.

The Zircon MetalliScanner 7 is a powerful tool that saves time and money by eliminating guesswork, rework, needless holes, and costly broken drill bits or saw blades.

Recommended uses include locating and reinforcing rebar in masonry and measuring subsurface nail spacing in roofing material for compliance with building codes.

Zircon MetalliSacanner 7 Features:

  • Two scanning modes; Standard mode and DeepScan mode
  • Locates and determines the depth of 1/2 in. rebar and 1/2 in. copper pipe up to 6 in. (15 cm) deep
  • Finds and differentiates ferrous and non-ferrous metal
  • Position accuracy to within ± 1/2 in. for #4 rebar or 1/2 in. copper pipe

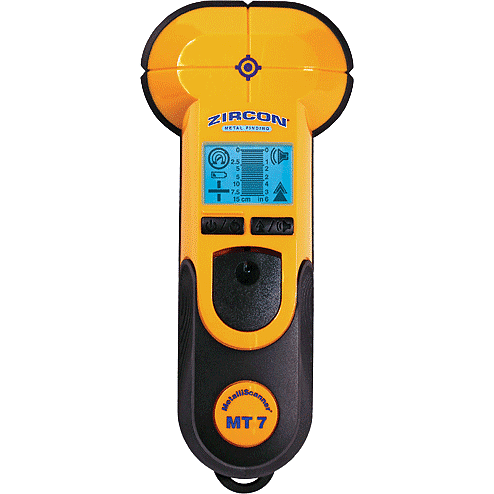

  • Backlit display and audio tone clearly indicate location of target

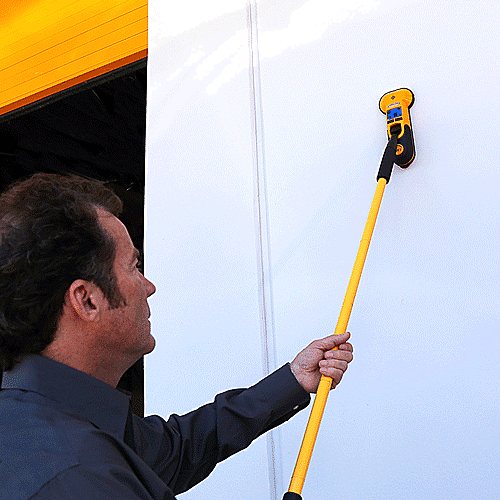

  • Pivoting handle attachment included for extended and overhead reach.  Use any threaded handle to screw into attachment and extend your reach
  • Rubberized handle and built-in lanyard loop
  • Includes 9V battery and protective carrying case

Zircon MetalliSacanner 7 Specifications:

  • Dimensions: 9.72 in. H x 4.29 in. W x 2.05 in.
  • Weight: 10.3 oz. without battery
  • Battery Type: 9V alkaline (included)
  • Position Accuracy: Center of #4 (½ in.) rebar or ½ in.  copper pipe at a minimum grid spacing of 6 in. typically within ½ in.
  • Depth: Up to 6 in. ± 1 in.
  • Operating Temperature: 20° to 120°F
  • Storage Temperature: -20° to 150°F
  • Humidity: 5% - 90%, non-condensing
  • Water Resistance: Splash resistant, not waterproof

Click Here For Zircon MT7 Datasheet

Click Here for Zircon MT7 User Manual

    • Weight
      3.2 lbs
    • SKU
  • Dimensions
    9.72 x 4.29 x 2.05 in.
  • Product Weight
    10.3 oz.
  • Power Source
    9V batteries
  • Depth
    Up to 6 in. (152 mm) ± 1 in. (25 mm)
  • Operating Temperature:
    20° to 120°F (-7° to 49°C)
  • Storage Temperature:
    -20° to 150°F (-29° to 66°C)
  • Humidity:
    5% - 90%, non-condensing
  • Water Resistance:
    Splash resistant, not waterproof

Product questions

  • Olivier BENOIT
    04/13/2022, 04:14 PM

    Is the system can detect 1/4" Stainless Steel axe through plastic and liquids ?

    04/14/2022, 09:26 AM

    It can detect ferrous metals up to 3 inches deep so plastic would not be an issue. Liquids would not work because you have to have contact on a solid surface to be able to scan.

  • Larry Claudrick
    12/24/2021, 05:08 PM

    If I have a ceramic tile and half inch wall board can it go threw and find the wall stud?

    12/27/2021, 08:25 AM

    Yes it can but this is a metal scanner so you would have to find the nail or screw to locate the stud.

  • Duane Extreme johnson
    04/25/2020, 01:38 PM

    How accurate and how deep will it pick up rebar in concrete walls and floors?

    04/25/2020, 06:29 PM

    Depth up to 6 in. ± 1 in. Position accuracy to within ± 1/2 in. (13 mm) for #4 rebar or 1/2 in. copper pipe

  • James Howe
    02/02/2019, 08:44 PM

    Will it work locating a metalic object above a painted popcorn ceiling?

    02/04/2019, 08:36 AM

    Yes it will work for this application.

  • James Howe
    02/02/2019, 08:40 PM

    What are the improvements if any over the MT6

    02/04/2019, 08:35 AM

    Functionally they are the same. On the MT7 they added a port you can attach a pole to for using it on high walls or ceilings. The MT6 will no longer be available soon too.
