Data Logging Hot Wire Anemometer w/ 8:1 IR Thermometer – Measure Airflow and Temperature with Precision
The CIH20DL Hot Wire Anemometer combines airflow measurement with an integrated infrared thermometer for accurate data logging and performance. Track airspeed, airflow volume, and temperature with precision in a compact, durable design.
Data Logging Hot Wire Anemometer w/CF/COMMAND 8:1 IR Thermometer CIH20DL
The CIH20DL Data Logging Hot Wire Anemometer is a versatile tool that combines precise airflow measurement with the added functionality of an 8:1 infrared thermometer for surface temperature readings. Designed for professionals working in HVAC, environmental testing, and industrial settings, this device measures airspeeds as low as 2 ft/min with an accuracy of ±3%, handling even the lightest airflows with ease. It can capture up to 20,000 data points via USB for detailed analysis and logs airflow volumes up to 2.5 million CFM (72,000 CMM).
The built-in infrared thermometer with a laser pointer measures temperatures ranging from -25° to 999°F with high accuracy, making it ideal for checking surface temperatures. The large backlit LCD display allows for simultaneous display of airflow, volume, and surface temperature. With a data hold function and Min/Max/Avg tracking, you can capture and log up to 2000 data points, ensuring precision and easy analysis of your measurements.
Data Logging Anemometer / IR Thermomter Features & Benefits:
- Data Logging Capacity: Logs up to 20,000 data points via USB interface for detailed analysis.
- Precise Airflow Measurement: Measures airspeeds from 2 to 7874 ft/min with ±3% accuracy, and airflow volumes up to 2.5 million CFM.
- Infrared Thermometer: 8:1 IR thermometer with a laser pointer measures surface temperatures from -25° to 999°F.
- Multi-Unit Air Speed Display: Offers five airspeed units – ft/min, m/s, mph, km/h, knots.
- Backlit LCD Display: Large backlit display shows airflow, volume, or speed, plus remote surface temperature for easy readings.
- Data Hold & Min/Max/Avg Functions: Store and recall data with easy tracking of minimum, maximum, and average values.
- Telescoping Hot Wire Probe: Extends up to 70.8 inches for convenient airflow measurements in hard-to-reach areas.
- Auto Power Off: Powers down after inactivity to conserve battery life, with adjustable power-off times.
- USB Interface & PC Software: Includes USB cable and PC software for data transfer and analysis.
Data Logging Hot Wire Anemometer Specifications:
- Air Speed Range: 2 to 7874 ft/min (0.4 to 40 m/s)
- Airflow Volume Range: 0 to 2.5 million CFM (0 to 72,000 CMM)
- Infrared Temperature Range: -25° to 999°F (-32° to 537°C)
- Resolution: 0.1 ft/min, 0.01 m/s, 0.01 mph, 0.01 km/h, 0.01 knots
- IR Thermometer Accuracy: ±5.4°F from -25° to -4°F; ±3.6°F from -4° to 212°F; ±2% from 212° to 999°F
- Data Logging Rate: 5 seconds to 1 hour
- Display Size: 1.69 x 2.4 inches (backlit)
- Power Source: 9V battery (included) or AC adapter (included)
- Weight: 11.3 oz
- Operating Temperature: 32°F to 122°F

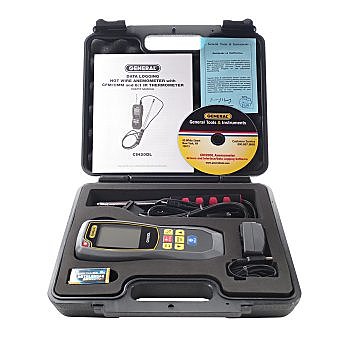

- Includes: USB cable, PC software, AC adapter, hard carrying case, battery, and user’s manual.
CIH20DL
Anemometer and Infrared Thermometer Includes :- USB cable
- PC Interface Software
- AC Adapter
- Hard Carrying Case
- Battery
- User’s manual
One Year Limited Manufacture's Warranty
-
Air Speed Range2 to 7874 ft./min
-
Airflow Volume Range0 to 2.5 million CFM
-
Temperature Measure Range32° to 158°F
-
Airflow Measurement Accuracy3% of reading
-
Operating Temperature32° to 122°F
-
SKUCIH20DL
-
GTIN68103501498
-
ManufacturerGeneral Tools and Instruments
-
Dimensions7.24 x 2.75 x 1.57 in.
-
Shipping Weight11.3 oz.
-
Power Source9V battery
-
WarrantyOne year warranty
-
IR thermometer distance-to-spot (D:S) ratio8:1
-
IR thermometer emissivity settingFixed at 0.95
-
Extended length of telescoping hot wire probe70.8 in.
-
LCD size1.69 x 2.4 in.
