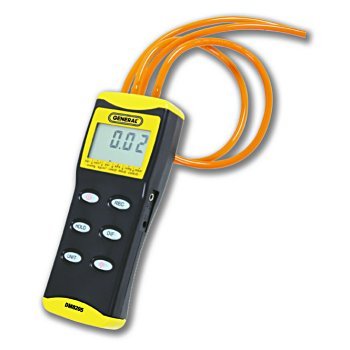

Manometer - Digital Pressure Gauge DM8205, DM8215

SKU# - DM82

The General Tools Manometer - DM8205 and DM8215.allows you to choose different psi levels to suit your needs.

  • $199.00
Add a different product to compare

Manometer - Digital Pressure Gauge - DM8205, DM8215

A Manometer is ideal for HVAC/R technicians measuring pressure level, medical equipment, computer peripheral and pneumatic controls.

Manometer - Digital Pressure Gauge - DM8205, DM8215  Features:

  • Measures and displays gauge or differential pressure.
  • Select from eleven pressure units of measure: psi, in.H2O, bar, mmHg, oz.in2, kgcm2, kPa, ft.H2O, in.Hg, cmH2O & mbar.
  • Min/Max memory plus data hold
  • Large backlit dual readout LCD, with pressure above relative time clock (which enables resettling of measurement timeline)
  • One button relative zero setting
  • RS-232 output jack
  • Auto power off (can be disabled for data logging)
  • Low battery indicator

Click Here to See User’s Manual

Manometer - Digital Pressure Gauge - DM8205, DM8215 Specifications:

Measurement range/resolution: (Select Model Above)
      0 to 5 psi/0.003 psi DM8205
      0 to 15 psi/0.01 psi DM8215
      0 to 30 psi/0.02 psi DM8230
Measurement accuracy:  +3% of full-scale value
Response time: 0.5 seconds
Dimensions of connection hoses: 39 in. long, width 0.16 in. and 0.24 in.
Auto power off triggering time: 20 minutes of front-panel inactivity
Operating temperature: 32° to 122°F @ <80%RH
Weight: 7.6 oz.
Power source: "9V" battery (included)

Manometer - Digital Pressure Gauge - DM8205 and DM8215 Includes:

  • Two Connection Hoses
  • Custom Hard Plastic Carrying Case
  • Battery
  • User's Manual

One Year Limited Manufacture's Warranty

OptionalASFTKIT Software for downloading and graphing readings on your PC

    • Weight
      2.75 lbs
    • SKU
  • Measurement Range
    0 to 30 psi
  • Response Time
    0.5 seconds
  • Operating Temperature
    32° to 122°F
  • Manufacturer
    General Tools and Instruments
  • Dimensions
    7.2 x 2.8 x 1.2 in.
  • Product Weight
    7.6 oz.
  • Power Source
    9V battery
  • Warranty
    One year warranty
  • Choose Model
    DM8205 0 to 5 psi
