Gillian BDX-II - Lead & Asbestos Air Sampling Pump
SKU: GIL-801863-171
SKU# - GIL-801863-171
The Gillian BDX-II Personal Air Sampling Pump BY Sensidyne is an economical air sampling pump designed specifically for asbestos abatement and lead applications. The BDX-II provides an economical alternative to higher-priced constant flow air sampling pumps.
Gillian BDX-II Personal Air Sampling Pump - For Lead & Asbestos Abatement
Personal Air Sampling Pump for Lead and Asbestos Abatement Applications
The Gillian BDX-II Personal Air Sampling Pump BY Sensidyne is an economical air sampling pump designed specifically for abatement and lead applications. Optimized for sample methods between 500 cc/min and 3000 cc/min.
Rugged and dependable construction of the BDX-II Air Sample Plump will withstand the toughest industrial environments. Without sacrificing accuracy and reliability, the BDX-II provides an economical alternative to higher-priced constant flow air sampling pumps.
- 500-3000 cc/min
- Anti-tamper control covers
- Sealed internal components
- Rechargeable NiMH battery pack
- Easy calibration
- UL approved for operation in hazardous areas
The Gillian BDX-II Lead & Asbestos Air Sampling Pump is powered by a rechargeable NiMH battery that provides up to 10 hours of operation on a single charge and easily detaches from the pump body for recharging and/or quick field change in non-hazardous locations.

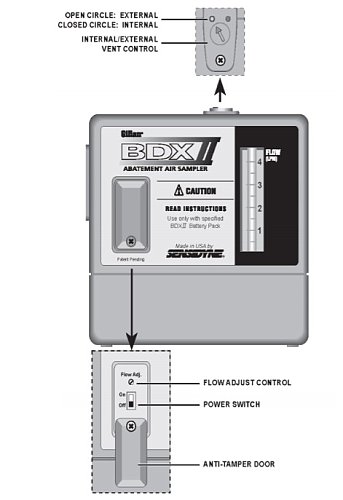

The built-in rotameter monitors flow rates over the entire flow range of 0.5 - 3.0 LPM and an electronic flow control adjustment enables parts to last longer so maintenance is minimized. Sealed flow adjustment and on/off switch protects the BDX-II from moisture, dust and fibers.
The Gillian BDX-II has a filter that protects the internal pneumatics from dirt and debris. This filter is externally mounted, enabling users to quickly and easily inspect filter condition and when necessary replace the filter.
Gillian Asbestos and Lead BDX-II Air Sample Pump Features:
• High impact Lexan plastic case for durability
• Light weight construction for comfort when unit is attached to belt
• Built-in, easily readable flowmeter
• Small, long life pump
• Long life, rechargeable battery pack
• Battery pack rechargeable while attached to unit, or separately
• Belt clip for portability and convenience
*Approximate Pump Size: 5x5x2
Gillian Asbestos and Lead BDX-II Air Sample Pump Specifications
BACKPRESSURE COMPENSATION | Not Specified/No Flow Compensation |
CHARGER | 120V |
DATALOGGING | No |
DISPLAY | No |
FLOW FAULT | No |
FLOW RANGE | 0.5-3 LPM |
INTRINSICALLY SAFE | Yes |
MAX FLOW RATE | 3 LPM |
PROGRAMMABLE | No |
PUMP STYLE | BDX II |
STP CORRECTION | No |
WARRANTY | 1 Year |
BDX-II air sampling pumps accurately monitor for asbestos using the NIOSH Method 7400 or the OSHA reference sampling method. The pumps also monitor for lead using NIOSH Methods 7082, 7105 or 7300.
Pump Usage | Weekly Use | Es. Battery Life† |
HIGH | 40-60 HRS | 1 - 1.5 YEARS |
MEDIUM | 20-39 HRS | 1.5 - 2.5 YEARS |
LOW | < 20 HRS | OVER 2.5 YEARS |
† Inactivity for extended periods may shorten battery life. | ||

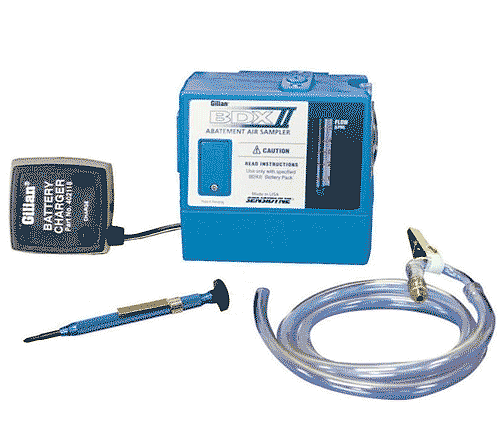

BDX-II Personal Air Sampling Pump Kits Include:
GIL-801863-171-1201 - Single Kit
BDXII pump, battery, charger, tool kit, tubing, clip assembly, and manual
GIL-801863-171-KIT - 5 Pump Kit With Individual Chargers
5 pumps, 5 batteries, 5 single station chargers, 5 tool kits, 5 36" tubing sets, 5 clip assemblies and 5 manuals and a toolbox style carrying case.
GIL-801863-171-ZKIT5 - 5 Pump Kit With Zefon 5 Station Charger
5 pumps, 5 batteries, Zefon 5 station charger, 5 tool kits, 5 36" tubing sets, 5 clip assemblies and 5 manuals and a toolbox style carrying case.
GIL-801863-171-KIT5 - 5 Pump Kit With Gilian 5 Station Charger
5 pumps, 5 batteries, Gilian 5 station charger, 5 tool kits, 5 36" tubing sets, 5 clip assemblies and 5 manuals and a toolbox style carrying case.
Click Here For Gilian® BDX-II Abatement Air Sampling Pump User Manual
- SKU801863
- ManufacturerSensidyne
- DimensionsPUMP SIZE: 5x5x2 approx.
- Shipping Weight2 lbs.
- Power SourceRechargeable NiMH battery pack
- WarrantyOne year warranty
- ACCESSORIES INCLUDEDTubing/Clip Assembly, Tool Kit & Manual
- BACKPRESSURE COMPENSATIONNot Specified/No Flow Compensation
- CHARGER120V
- FLOW RANGE0.5-3 LPM
- MAX FLOW RATE3 LPM
- Please Select KitIndividual Kit, 5 Pack With 5 Chargers, 5 Pack With Zefon 5 Station Charger, 5 Pack With Gilian 5 Station Charger
Product questions
- 09/21/2021, 04:55 PM
The casset has a blue end and a red end which way does it go for testing
09/22/2021, 09:01 AMThe blue end is the inlet. I have added an image to the product page for more detail.
- 07/25/2021, 03:12 PM
Hello, I was wondering if this pump can be attached to a liquid impinger?
07/26/2021, 09:48 AMYes it can. You should use and external Rotamer (part # Z116116) to calibrate the Train.
- 04/15/2021, 06:05 PM
Is the charger a USB charger, or the older style straight into the pump?
04/16/2021, 09:00 AMIt is the older style. They make a usb adapter and it is about $75 if you would like it.
- 12/22/2020, 09:59 PM
Can this kit adequately measure lead particulates in the air and if so does the kit contain all necessary operating materials to conduct the test?
12/23/2020, 10:29 AMThis pump doesn't actually measure the lead particulate. It takes samples with the sampling media (url below) that you send to a lab to get actual results.
https://www.toolexperts.com/zefon-asbestos-air-sampling-cassette-738mce - 05/26/2020, 04:49 PM
Good afternoon. I am looking at the Gillian BDX-II pump and I see that it comes with tubing. Is the tubing 1/4 inch ID tubing?
05/27/2020, 09:21 AMYes it is 1/4 inch ID tubing
