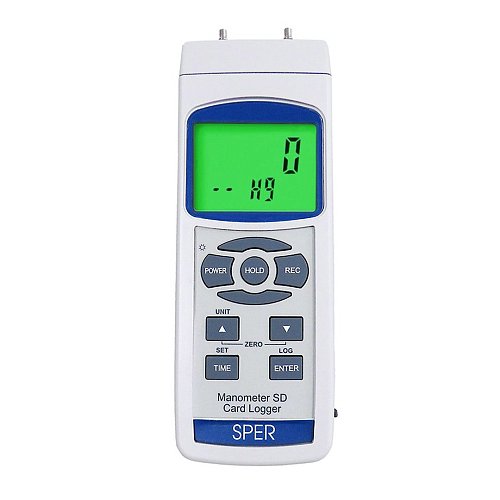

Manometer Pressure Data Logger - 850098

Manometer Data Logger - 850098

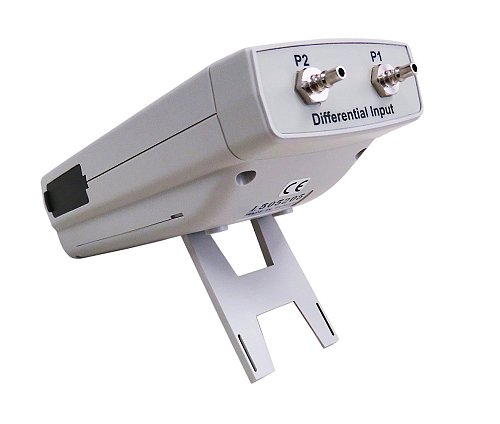

The 850098 Manometer Data Logger is designed for professionals who need to measure and log gauge and differential pressure in non-corrosive, non-ionized air and gas. This device provides accurate readings (±2% full scale) with a maximum pressure of 29 psi, making it ideal for HVAC technicians, laboratory work, and industrial applications.

One of the standout features of the 850098 is its data logging capability. The manometer records data with time and date stamps onto a standard SD memory card. When the card is full, simply swap it out for unlimited data storage. The recorded data can be easily transferred to a computer and uploaded into Excel for analysis, without the need for additional software or cables.

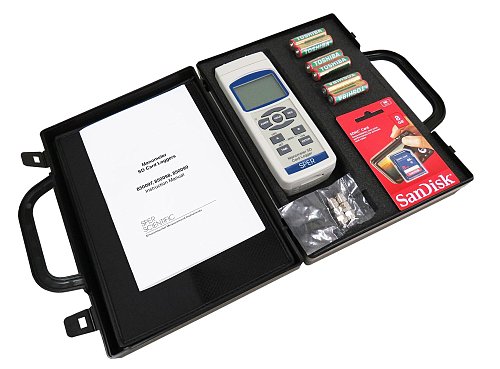

The 10 selectable units of measure, push-button zero offset, and min/max function make this manometer a versatile and easy-to-use tool. The large backlit LCD display ensures clear readings, while the fold-out easel allows for hands-free operation. This well-made device comes with everything you need, including a carrying case, 6 AA batteries, tubing, pipe attachment lugs, and an SD card.

Manometer Data Logger 850098 Key Features:

• Accurate Pressure Measurement: Reads gauge and differential pressure in non-corrosive air and gas with ±2% full scale accuracy.

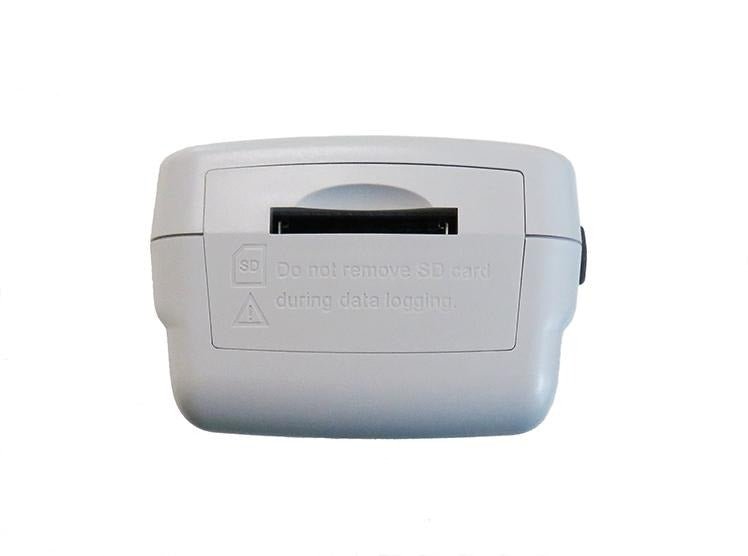

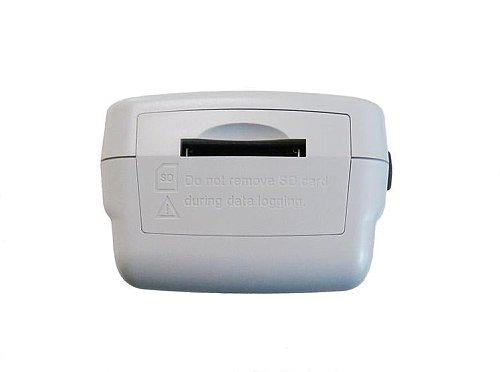

• SD Card Data Logging: Records data with time and date stamps onto standard SD cards for unlimited storage.
• No Additional Software Needed: Upload data directly into Excel for easy analysis.
• 10 Units of Measurement: Measures in psi, in H₂O, m H₂O, hPa, kPa, in Hg, mbar, mm of Hg, kg/cm², and atmosphere.
• Push-Button Zero Offset: Quickly zero the unit for precise measurements.
• Min/Max and Hold Functions: Capture and store minimum, maximum, and current readings for easy reference.

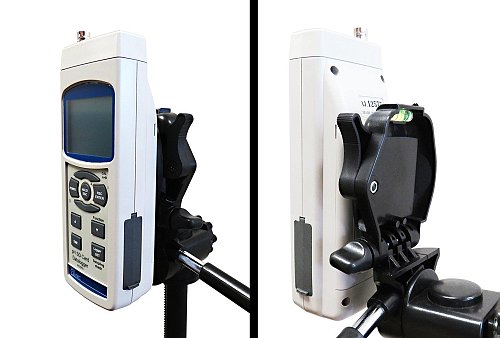

• Large Backlit LCD Display: Clear, easy-to-read display with a fold-out easel for hands-free use.
• Auto Power Off and Low Battery Indicator: Conserves battery life and notifies you when batteries are low.

Manometer Data Logger 850098 Specifications:

• Pressure Range:
  • psi: 0 to 29 (resolution: 0.01)
  • In H₂O: 0 to 802 (resolution: 0.5)
  • m H₂O: 0 to 20.4 (resolution: 0.01)
  • hPa: 0 to 200 (resolution: 0.1)
  • kPa: 0 to 2000 (resolution: 1)
  • In Hg: 0 to 59.05 (resolution: 0.01)
  • mbar: 0 to 2000 (resolution: 1)
  • mm of Hg: 0 to 1500 (resolution: 1)
  • kg/cm²: 0 to 2.04 (resolution: 0.001)
  • Atmosphere: 0 to 1.974 (resolution: 0.001)
• Accuracy: ±2% full scale
• Dimensions: 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
• Weight: 1 lb. (0.45 kg)
• Power Source: 6 AA batteries (included)
• Data Storage: SD card included
• Accessories: Includes tubing, pipe attachment lugs, carrying case, and user manual
