Zefon Cyclone Starter Kit - 37MM Aluminum
SKU: ZA0062

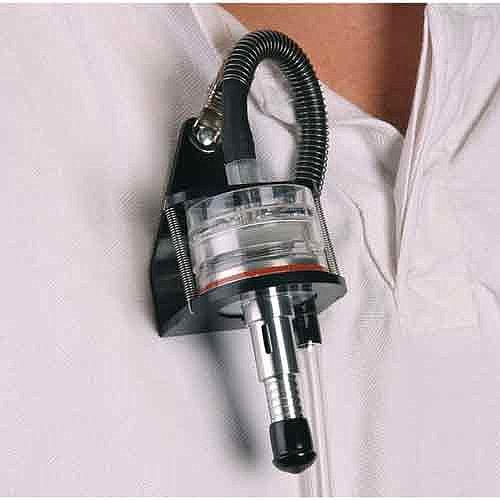

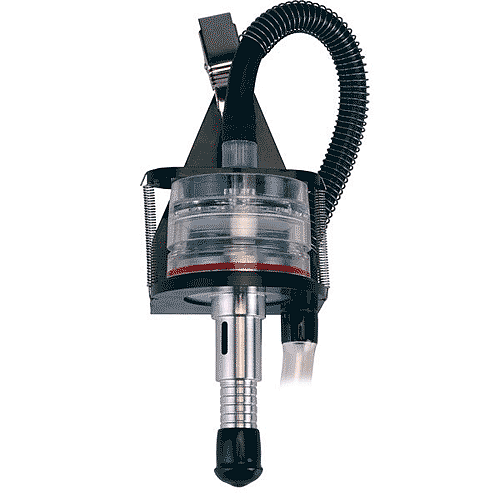

Zefon 37mm Aluminum Cyclone for Respirable Dust with Holder
Zefon Aluminum Cyclone Starter Kit for Respirable Dust with Holder - 37mm ZA0062
The Zefon® Respirable Dust Aluminum Cyclone is used in conjunction with 25mm or 37mm 3 piece filter cassettes to separate and remove larger particles from the respirable particles collected on the cassette’s filter. This Zefon cyclone is a replica of the SKC Aluminum Cyclone*. The inner workings have been precisely machined to exactly match that of the SKC Cyclone with only slight cosmetic changes to the exterior.
As a result, the collection efficiency curve meets the standards set forth by ACGIH/ISO/CEN for a respirable curve with a median 50% cut point of 4 micron at 2.5 LPM flowrate.
Cassettes must be purchased separately.
Cyclone Starter Kit Features:
- Aluminum construction is static conductive, eliminating interference.
- Lightweight – 30 grams
- Fully interchangeable with SKC Aluminum Cyclone
- Specified in NIOSH method 0600 for Respirable Particulates, and NIOSH 7500 for Silica, Crystalline
Aluminum Cyclone Specifications:
| CUT POINT | 4 micron |
| FLOW RATE | 2.5 LPM |
| MATERIAL | Aluminum |
| TYPE | Aluminum |
