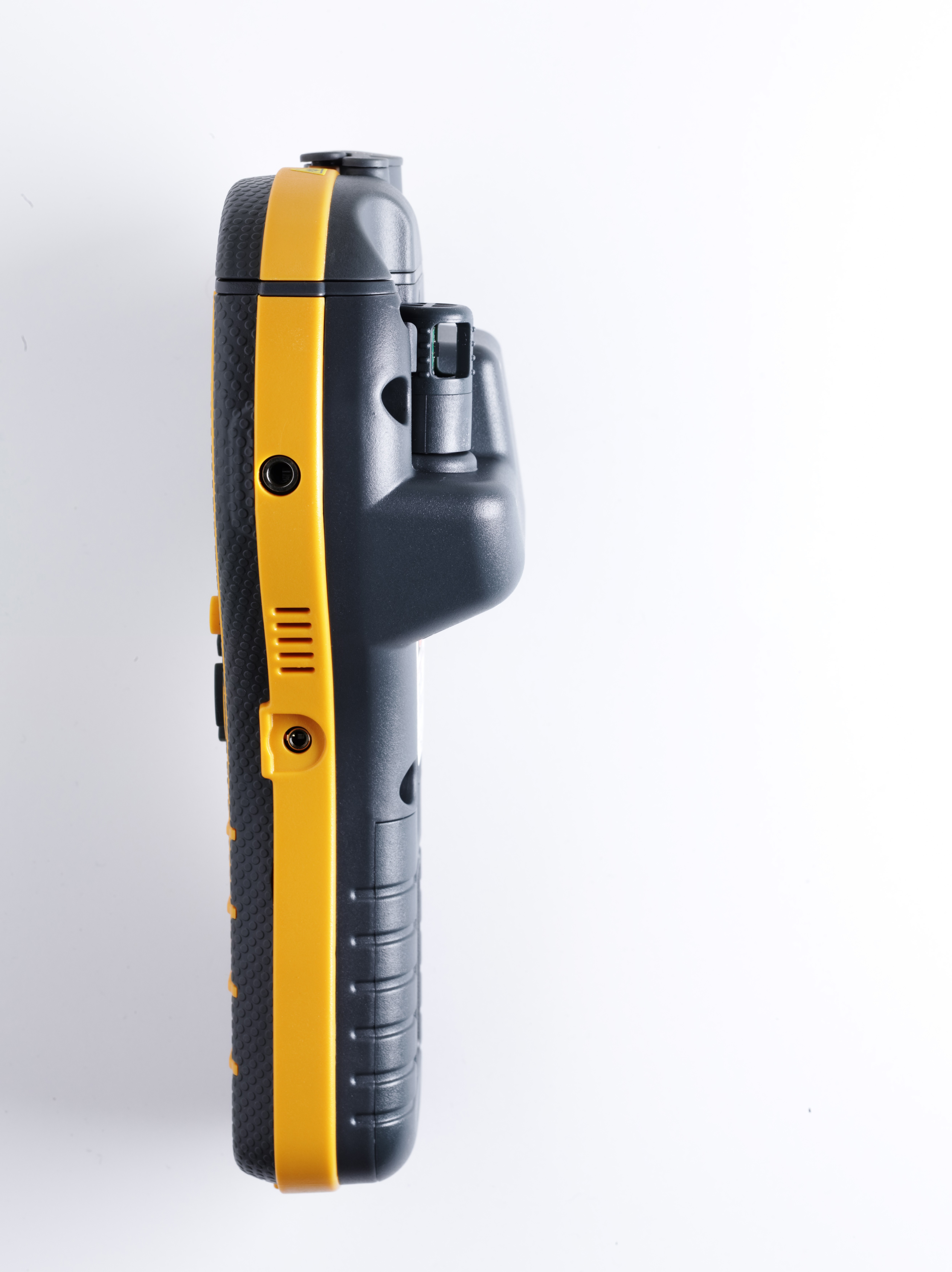

Protimeter Moisture Measurement System MMS3 - BLD9800

SKU# - BLD9800

Protimeter Moisture Measurement System MMS3 - BLD9800 - Now with wireless capability!

The Protimeter MMS3 represents the latest in moisture measurement technology. Its ergonomic 4-in-1 design allows for quick and reliable full building diagnostics both on and below the surface, from new construction to restoring projects in pre-existing buildings.

Also, with built-in hygrometric capabilities and infrared laser thermometer, the MMS3 also assesses indoor air quality conditions.

  • $1290.00
Add a different product to compare

Protimeter Moisture Measurement System MMS3 - BLD9800

Complete Moisture Measurement System with Wireless Capability

Protimeter Moisture Measurement System MMS3 - BLD9800 Applications:

When accurate environmental readings need to be reported, the MMS3 is what you need on your side. The ability to record readings instantly at the push of a button makes this instrument ideal for many applications including:

  • Fire and flood restoration
  • Concrete floor moisture measurement
  • Home inspection
  • Building survey
  • Moisture mapping

Protimeter Moisture Measurement System MMS3 - BLD9800 Features:

  • Pin moisture measurement with built-in calibration check
  • Improved non-invasive moisture measurement with sensitivity mode feature and simple field calibration
  • Non-contact surface temperature measurement with Infrared (IR) laser pointer
  • Fast Response
  • Manual and automatic data logging up to 10,000 records
  • File viewer mode to view logged data
  • Data reporting and processing through Protimeter PC software
  • Live data stream over Bluetooth, data log into file or embedded into an image in Protimeter app
  • Web interface to view the logged data
  • Easy-to-use interface with color display and multi-language capability
  • Firmware upgradable

Protimeter Moisture Measurement System MMS3 - BLD9800 For Use With:

  • Wood
  • Drywall
  • Building Materials
  • Concrete

Protimeter Moisture Measurement System MMS3 - BLD9800 Specifications:

Gross Weight

Instrument only with batteries 10.9 oz

Regulatory Compliance


Plug-In Surface Temperature Probe


Range: 32°F to 158°F

Accuracy: ±1.3°F  @ 77 °F


2.4" TFT Color LCD

320x240 Resolution

Blacklight with adjustable brightness

Outdoor Mode

Batteries (Included)2xAA Alkaline Batteries

Standard Limited Warranty for 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories., which have a 12 month warranty for normal use.

Moisture Measurement Range

Pin (% WME): 6% to 100% (Readings over 30% are relative.)


Non-Invasive (RF): 60 to 999 Relative, up to 3/4" (19mm) deep in standard mode and up to 5" (12cm) deep in sensitivity mode  (varies with material under test.)

IR Surface Temperature Probe Range

LASER Pointer: 12:1 (D:S) Ratio

Range: -4°F to 176°F

Accuracy ±3.6°F

Hygrostick Data (Nominal) 30% t 40% RH (±3% RH) at 68°F (20°C) 41% to 98% RH (±2%) at 68°F (20°C). Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
Quickstick Data (Nominal)

0% to 10% RH, ±3% RH at 68°F (20°C), 10 to 90% RH, ±2% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) ±0.6%°F (±0.3°C)  Nominal response 30% to 90%

Data Storage

Manual and Automatic Logging: Store up to 10,000 results in the device with date and timestamp from all instrument functions.


Store results of interest in cloud from live data on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface.

Click Here for User's Manual

MMS3 Kit Options:

BLD9800 Basic Kit Instrument in pouch

BLD9800-S Basic Survey Kit  Instrument and primary accessories in pouch

BLD9800-C Survey Kit Instrument in hard case

BLD9800-CS Survey Kit Instrument and primary accessories in hard case

BLD9800-CR Restoration Kit Instrument, primary accessories, and HD Hammer Electrode in hard case

Kit Contents                                     9800         9800-S     9800-C    9800-CS     9800CR

*All Kits Include MM3 Instrument & Quick Start Guide

Quickstick ST - POL8751XXXXX
HD MC Probe - BLD5060XXXXX
Hygrostick - POL4750
Hygro/Quik Extension Lead - BLD5802

HD Hammer Electrode - BLD5055

4x Hammer Pins - BLD05296

5" Deep Wall Probes - BLD5018

Surface Temp Sensor -  BLD5808

Pre-formed Case - 441-025XX

Hard Carry Case - BLD5910


    • Weight
      4 lbs
    • SKU
  • Measurement Range
    Pin (% WME): 6% to 100% (Readings over 30% are relative.)
  • Display
    2.4" TFT Color LCD
  • Auto Power OFF
  • Sensor Type
    Pin and Pinless
  • Manufacturer
  • Product Weight
    10.9 oz
  • Power Source
    AA Alkaline Batteries
  • Warranty
    2 Year Manufacture's Warranty
  • Select Kit:
    MMS3 Instrument with Pouch - BLD9800, MMS3 Standard Kit with Hard Case - BLD9800C, MMS3 Restoration Kit with Hard Case - BLD9800CR, MMS3 Survey Kit with Hard Case - BLD9800CS, MMS3 Survey Kit with Pouch - BLD9800S
