Refrigerant Leak Detector Testing RLD400

SKU# - RLD400

Refrigerant Leak Detector Testing RLD400

  • $399.00
Qty:
Add a different product to compare

Refrigerant Leak Detector Testing RLD400

Detects all commercially available HFC, HFO, HC, HCFC, and CFC Refrigerants in mobile and stationary air conditioners, refrigerators, chillers and heat pumps

Stopping Refrigerant Gas Leaks will keep your AC system running at peak efficiency, save money and even improves a vehicle’s gas mileage.

Why look for refrigerant leaks?

There are three reasons to detect and repair leaks of refrigerant gases from stationary and mobile air conditioners, refrigeration systems and heat pumps:

1. Leaks allow air and moisture to enter an A/C system or chiller. Moisture can react with refrigerant to form corrosive acids and sludge that can damage a compressor, plug up orifice tubes, and/or eat pinholes in evaporators and condensers.

2. Refrigerant is expensive. It may seem cheaper to keep recharging your system with refrigerant than fix a leak—but it isn’t in the long run. And A/C systems and chillers that aren’t fully charged won’t cool efficiently and thus waste money (electricity-powered systems) or fuel (vehicle systems).

3. Most refrigerants deplete the ozone layer that blocks the Sun's harmful ultraviolet radiation. In the U.S., the Clean Air Act of 1990 and later amendments require owners or operators of refrigeration and air-conditioning equipment with refrigerant charges greater than 50 pounds to repair leaks within 30 days when those leaks result in the loss of more than 15% (comfort cooling) or 35% (commercial cooling) of the charge over a 12-month period.

New proprietary semiconductor sensor detects many new ozone layer-friendly refrigerants approved under the U.S. EPA's Significant New Alternatives Policy (SNAP)

Refrigerant Leak Detector Features:

  • Proprietary sensor with lifetime of >300 hours of operation (ten years’ normal use)
  • Triple-redundant leak indication (loud fast beep, bright flashing LED, digital leak size reading)
  • Sensitivity of 0.05 oz./year (1.4 g/year) to R-134a
  • True mechanical pump draws in samples, increasing sensitivity
  • Automatic calibration and reset to ambient levels
  • Three sensitivity levels
  • Fast warm-up
  • Padded hard plastic case
  • Garage-durable construction
  • Leak test vial sampler

RLD400 Leak Detector Specifications:

Refrigerants Detected: R-134a, R-410a, R-404a, R-407c, R-507, CFC-12 (R-12 or Freon), R-22, R-290, R-441A, R-600a, R-1234yf
Sensitivities: 0.05 oz./yr (1.4 g/yr) to R-134a; 0.025 oz./yr (0.7g/yr) to R-22
Sensor Type: Proprietary solid electrolyte semiconductor
Warmup Time: 17-20 seconds
Display Type, Size: 7-segment red LED, 0.6 in. high
Dimensions of Instrument: 6.8 x 2.6 x 2.2 in.  w/17 in. probe
Weight of Instrument: 1.5 lb.
Complies with SAE Standards J2791 and J2913
European Standard EN14624
Power Source: 4 “AA” batteries (included)
Battery Life: 5 hours continuous operation (typical)

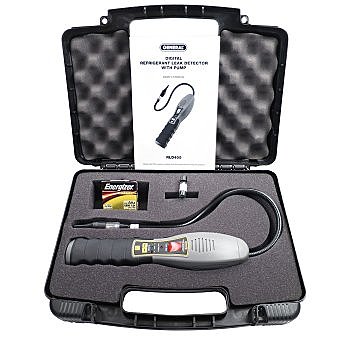

RLD400 Leak Detector Includes:

  • Leak Test Vial
  • Batteries
  • Custom hard plastic carrying case
  • User’s Manual

Two Year Manufacture's Warranty - Includes Sensor

Made in the USA

    • Weight
      1.5 lbs
    • SKU
      RLD400
  • Manufacturer
    General Tools and Instruments
  • Dimensions
    6.8 x 2.6 x 2.2 in.
  • Shipping Weight
    1.5 lbs.
  • Power Source
    AA batteries
  • Warranty
    2 year warranty - Includes Sensor
  • Refrigerants Detected:
    R-134a, R-410a, R-404a, R-407c, R-507, CFC-12 (R-12 or Freon), R-22, R-290, R-441A, R-600a, R-1234yf
  • Sensitivities:
    0.05 oz./yr (1.4 g/yr) to R-134a; 0.025 oz./yr (0.7g/yr) to R-22
  • Sensor Type:
    Proprietary solid electrolyte semiconductor
  • Warmup Time:
    17-20 seconds
  • Battery Life
    5 hours continuous operation (typical)
  • Standards:
    Complies with SAE Standards J2791 and J2913
