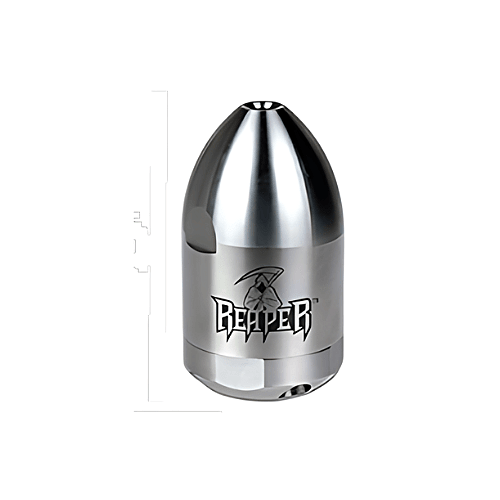

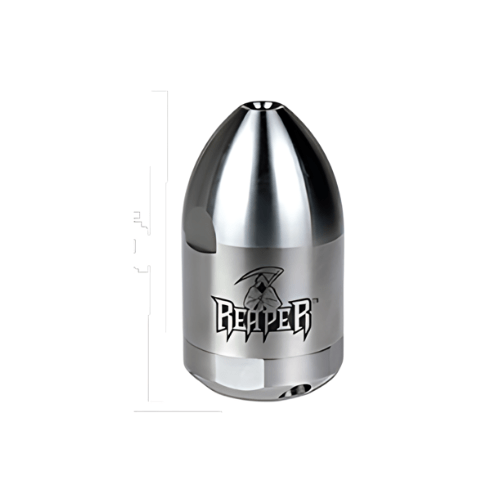

Reaper Jetter Nozzle 1/2 inch - RS 830

SKU: RS830

Reaper 1/2" Jetter Nozzle - Ideal for 4" - 8" pipes.

These heavy-duty, high impact nozzles are constructed with stainless steel housing and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than ceramic nozzles.

Ask a question (0)

Reaper Jetter Nozzle 1/2 inch - RS 830

Please see Chart Below for Accurate Nozzle Sizing

The Reaper’s rotating front jet is a 0-degree, straight water stream that blasts at up to 4000 PSI while rotating at an optimal speed to form a 30-degree cone of coverage. Reaper’s rear jets create maximum thrusting and pulling power.

Durable
Efficient
Repairable

Reaper Jetter Nozzle 1/2 inch Specifications:

Minimum Inlet Pressure: 1,500 PSI (103 bar)
Maximum Inlet Pressure: 4,000 PSI (276 bar)
Maximum Water Temperature: 180ºF (+82ºC)
Housing Material: Stainless Steel
Nozzle Tip & Seat Material: Tungsten Carbide
Inlet Connection Thread: 1/2” FNPT
Front (Rotating) Spray Angle: 30º
Rear (Static) Spray Angle: 20º

Flow Rate PSI	@1500	@2000	@2500	@3000	@3500	@4000
Nozzle Size 12.0 #1003032-120	7.3 GPM	8.5 GPM	9.5 GPM	10.4 GPM	11.2 GPM	12.0 GPM
15.0 #1003032-150 1	9.2 GPM	10.6 GPM	11.9 GPM	13.0 GPM	14.0 GPM	15.0 GPM
18.0 #1003032-180	11.0 GPM	12.7 GPM	14.2 GPM	15.6 GPM	16.8 GPM	18.0 GPM
24.0 #1003032-240	14.7 GPM	17.0 GPM	19.0 GPM	20.8 GPM	22.4 GPM	24.0 GPM
