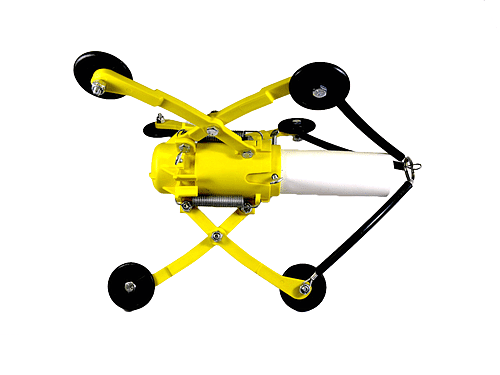

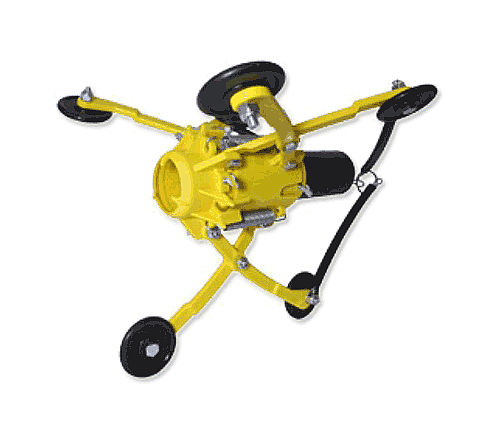

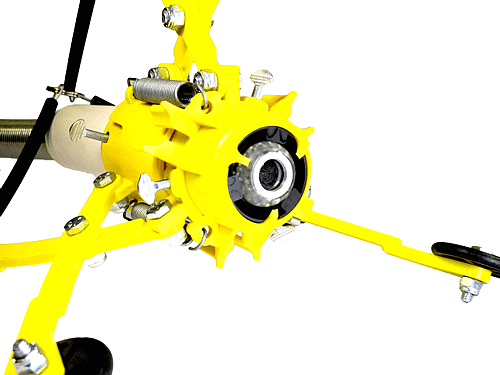

Sewer Camera Universal Roller Centering Guide - URS-1

Universal Sewer Camera Centering Guide - URS-1

Operates in 6 to 12 Inch Pipes

The device’s ability to contract and expand for use in 6”-12” pipelines will allow you to use your portable video inspection system in applications that previously required expensive tractor systems.   The URS1 allows for inspection cameras to negotiate multiple corners and bends and increases the depth range significantly. The URS accepts most standard push cameras 2 inches in diameter.

The Universal Roller Skid was created to increase the effectiveness and lifespan of your portable video inspection system.  The URS is constructed of lightweight, durable, corrosion resistant composite nylon.

Centering Guide Features and Benefits:

• Keeps your camera head centered in the pipeline
• Easily Adapts To Your Portable Video Inspection System For Use In 6" - 12" and larger pipelines
• Accepts cameras 2 Inches and under in diameter
• Increases camera lifetime.
• Constructed of lightweight, corrosion resistant nylon
• Increases depth range
• Three Pivoting Arms Dynamically Adjust To Fit The Required Diameter Pipe
• No Extra, Tools Or Manual Adjustments Are Required
• Six Rugged Nylon Wheels Allow The Skid To Roll Easily
• Security Harness For Emergency Removal

This product does not include a push camera.

Adapter Sleeves are available for purchase to allow smaller push camera heads to be inserted into the Universal Roller Skid

Measure actual camera head diameter and some cameras have a removable sleeve or snow ball which may need to be removed to fit our roller skids - double check your camera size.

2-Year Manufacturer Warranty
